制冷系统十大仿真软件:制冷行业最实用的壳管换热器设计与模拟:Unisuite ShELL

[复制链接]
Steven.liu 发表于 2020-10-5 20:23:51 | 显示全部楼层 |阅读模式 打印 上一主题 下一主题
制冷系统十大仿真软件:制冷行业最实用的壳管换热器设计与模拟:Unisuite ShELL
  • 文件大小24MB
  • 上传时间2020-10-05
  • 下载权限制冷原理VIP、全站VIP、终极VIP
  • 提取码免费资料,注册会员下载全套
分享至:



制冷系统十大仿真软件:制冷行业最实用的壳管换热器设计与模拟:Unisuite ShELL

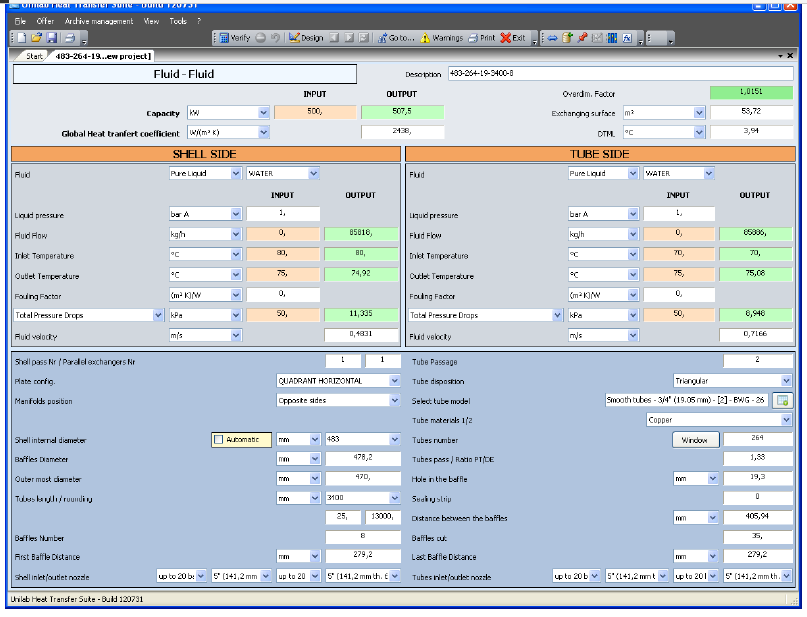

UNILAB SHELL allows you to design, rate and select your exchanger with the benefit of 5 different calculation
modalities: fluid-fluid, evaporation inside tubes, condensation inside/outside tubes, flooded evaporators, steam
inside/outside tubes
At the current time, UNILAB SHELL is the only software that allows the complete design of a brand new exchanger
from scrath. In case you need to design a special exchanger and you lack the time to use a complex software, and
set all the parameters, with our software you just have to select the fluids, set the working conditions and the
required power, click on the "Automatic calculation box and you are done. The new exchanger will adhere perfectly

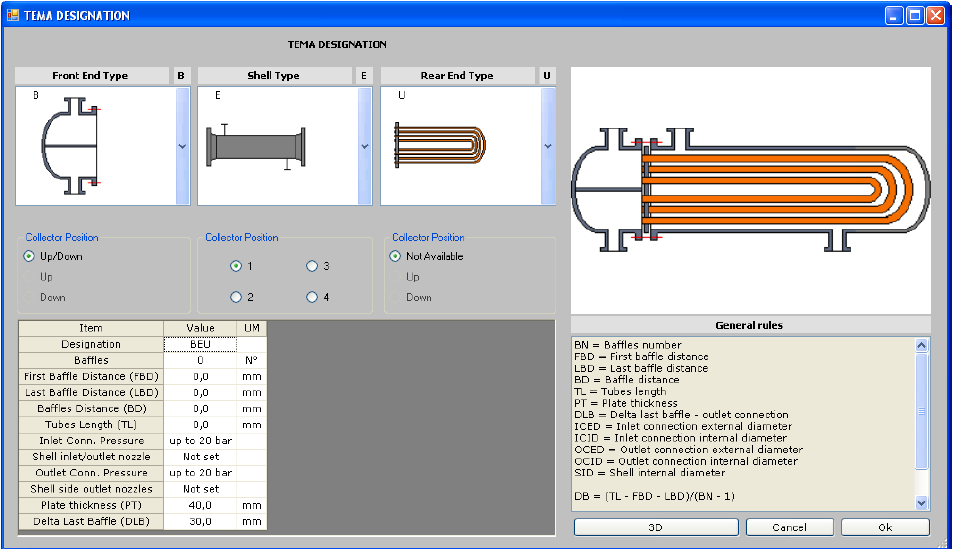

to the TEMA Standard th Edition normative in all its requirements. Furthermore, if the required power does not
match, the software will calculate the number of TEMA exchangers required
UNILAB SHELL allows you to analyse applications in which the fluids inherent to the heat exchanger undergo a
change of phase. Currently UNILAB SHELL, like all Unilab Software, uses the Refprop ver. 8 of the NIST(National
Institute of Standards and Technology)which contains a wide variety of fluids used in the air conditioning an
refrigeration industries. This library contains both thermodynamics and thermoph sical properties with 12 liquid
mixtures and a list of more than 300 liquids and gases
UNILAB SHELL is a key component of the UNILAB UNISUITE product family that comprises the broadest range of heat
exchanger design software in the world and utilizes proprietary methods backed up by more than 28 years of
practical in-house research. Our aim is to enhance the value of heat transfer solutions by providing the most
integrated product offering



UNILAB SHELL允许您设计、评估和选择您的交换机,具有5种不同计算的好处


形式:流体、管内蒸发、管内外冷凝、浸没式蒸发器、蒸汽内外管


目前,UNILAB SHELL是唯一一款能够完成全新交换机设计的软件从斯克拉斯。如果您需要设计一个特殊的交换机,而您没有时间使用复杂的软件,并且


设置所有参数,使用我们的软件,您只需选择流体,设置工作条件和所需功率,点击“自动计算”框,您就完成了。新换热器能很好地粘合


符合TEMA标准第th版规范的所有要求。此外,如果所需功率不匹配,软件将计算所需的TEMA交换器数量


UNILAB SHELL允许您分析换热器固有流体的应用相位变化。目前UNILAB SHELL和所有UNILAB软件一样,使用Refprop ver。NIST(国家


标准与技术研究所)所含的各种液体用于空调和制冷工业。这个库包含了12种液体的热力学和热力学性质


混合物和300多种液体和气体的清单UNILAB SHELL是UNILAB UNISUITE产品系列的关键部件,该系列产品包含最广泛的热量范围


全世界交换机设计软件,采用专有方法,由28多年的内部实践研究。我们的目标是通过提供集成产品供应(版权原因,本资料提供使用手册的下载)
