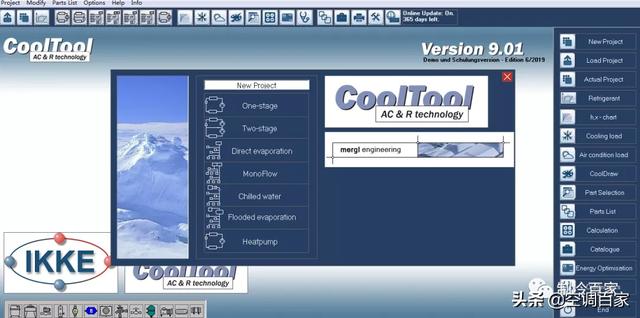

在制冷系统热力计算和部件选型中(压缩机、两器、节流阀等),很多同行都寻寻觅觅一些简单实用的仿真软件,但是大部分的软件都是收费比较高或者企业内部的软件(开立、特灵内部软件),还有一些软件就比较专业了(AMESim、ASPEN等),对于大部分的制冷行业从业者来说都遥不可及,或者闻所未闻。 01、冷冻空调设计王牌软件—Cooltool 这个软件是商用软件,涵盖了单级压缩、双级压缩、直膨胀系统、二次冷媒系统、水系统、满液式冷媒系统、空调负荷、空气侧参数、冷库计算、热泵设计、报价、能效评估等等功能: ![](http://p26-tt.byteimg.com/large/pgc-image/ff0f3505b2294ae68a8fd5e10a65aeaf)

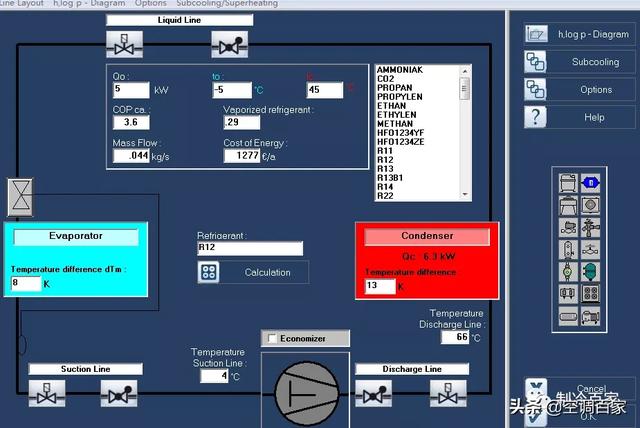

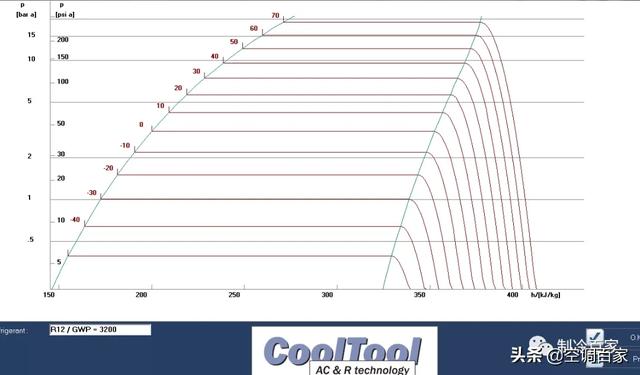

功能太强大,我们只简单展示几个功能: 制冷系统模块: ![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/cbe67a6da54743f98ed60aa9a228bb6e)

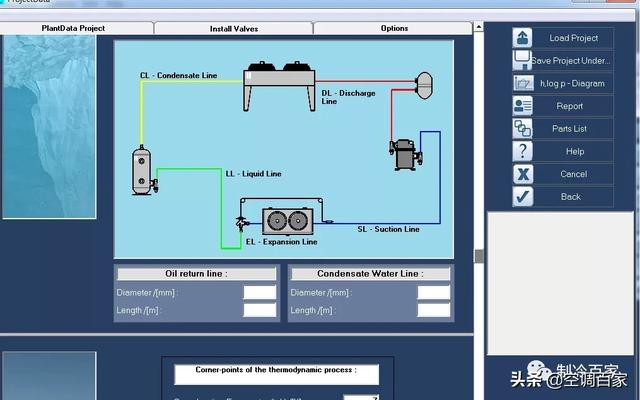

![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/24ca3a91132b4c8f9aed771ca398676d)

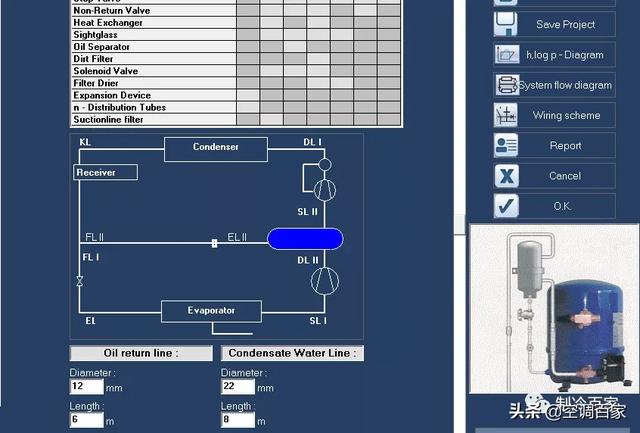

![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/a65d55feeb00453b8eb2bf09761b200e)
冷库计算模块: ![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/190c4dfd07414670aa04920bb01d33e8)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/3891efc7ac0b4b8b90b8597b72777d72)

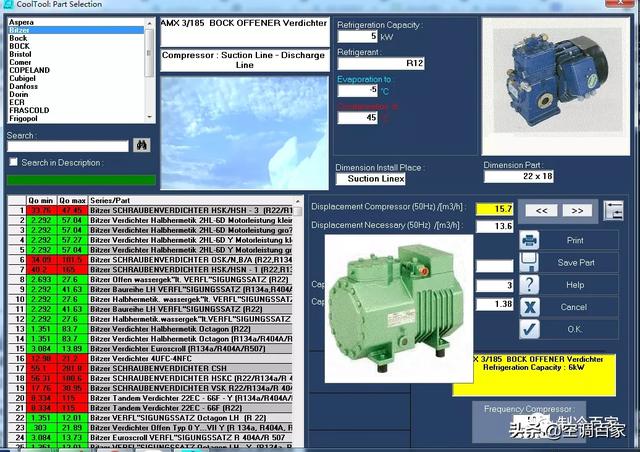

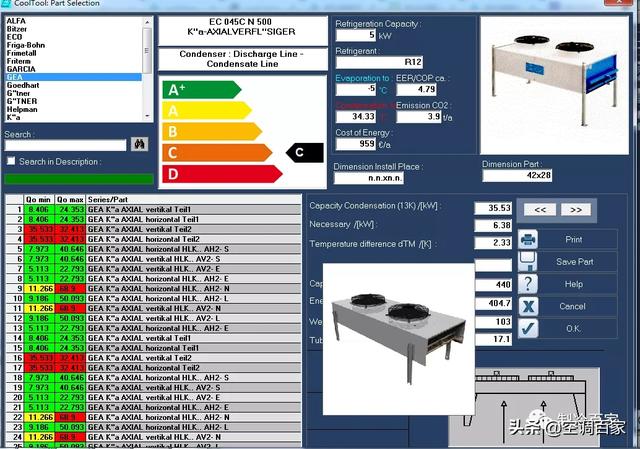

最强大的功能就是,cootool涵盖了绝大多数品牌的四大件的选型库,可以直接把制冷系统所有部件的型号和品牌选择出来, ![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/66a4c8b80e5f498f92fefa0cb9b9adad)
![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/caafee1b45e54ceab21749d3db02b788)
软件功能太强大,小编可以整整写一本500页的说明书...... 02、最强大的制冷系统热力计算—coolpack 这个软件我们在我们以往的文章中出现了多次,现在很多同行业都在使用这个软件,笔者之前也经常用这个软件,但自从改用excel做制冷仿真后,就很少在用这个软件了;我们看下软件的几个截图: ![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/ab18818a874c496cbb73a9d75e639e82)
单级压缩热力计算: ![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/29e8ea4bbbfe44e48e3b154954de77aa)

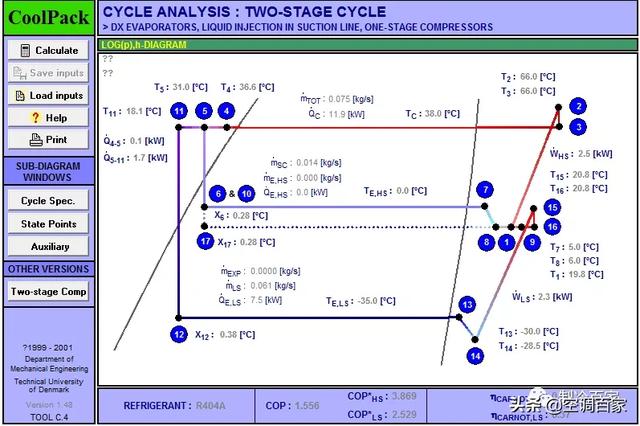

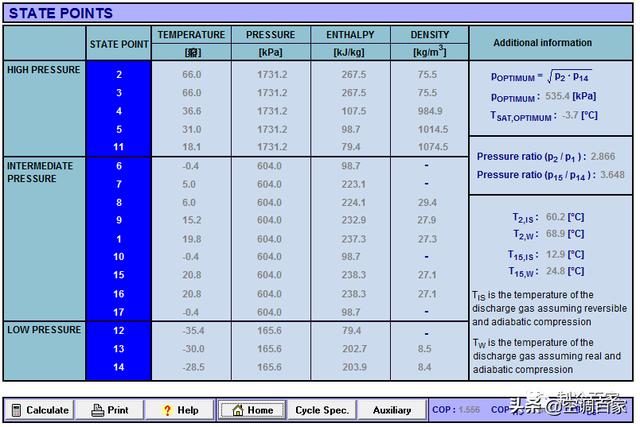

双级压缩带回热循环: ![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/94983543ebd54ad4b3cbe39ed9fb6c5f)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/8bbe22ee659f491cbfa170ef8253b1e3)
![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/2e118f8dfbfc4271adb08053c9ae9123)

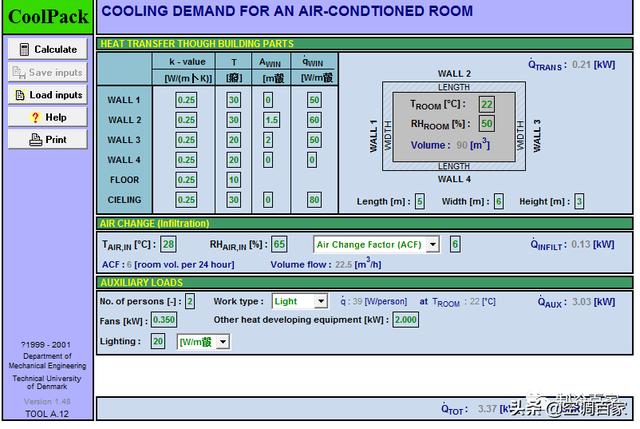

封闭空间的热负荷计算: ![](http://p26-tt.byteimg.com/large/pgc-image/f0e879f7c87a4e6b9a75df8c72b837db)

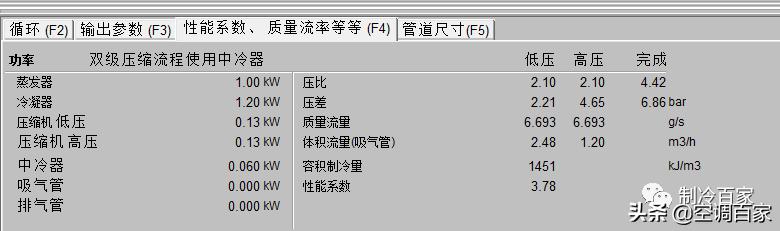

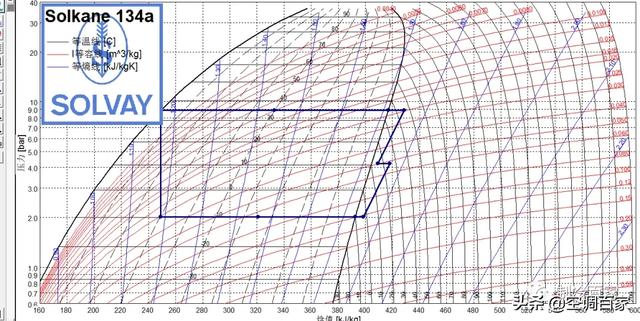

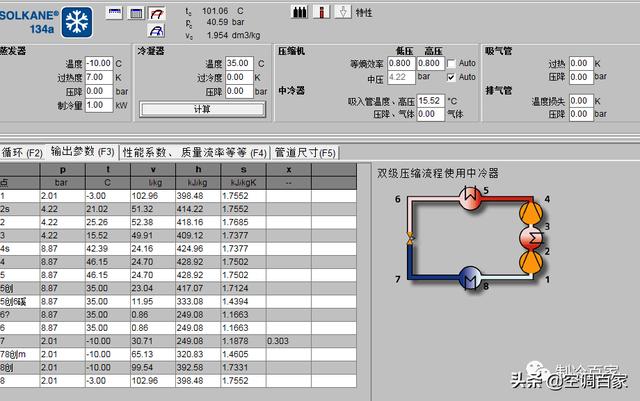

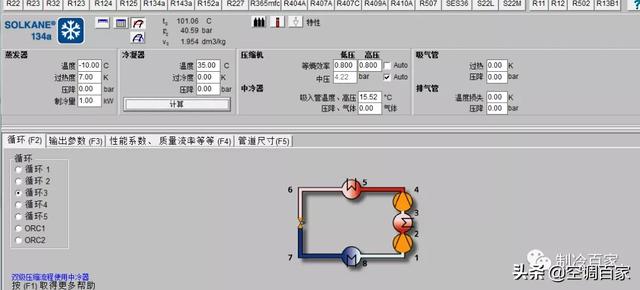

这个软件用来做一些热力计算还是不错的; 03、中文版制冷系统循环计算—SOLKANE 8 这个软件最大的优势就是中文版,很多英文不好的同行可以用这个软件来进行热力计算: ![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/0bff2054818e4088a8510fc0705c49e6)
![](http://p26-tt.byteimg.com/large/pgc-image/a787916470114e4fb48c2b9d4e3865ff)
![](http://p26-tt.byteimg.com/large/pgc-image/f2ea9b8738ee4fe5b6f68c23b01da469)
![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/d191fd1941634de490dc374a2dfcf9ef)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/6717cff302994faf9d8e43af388d04c5)

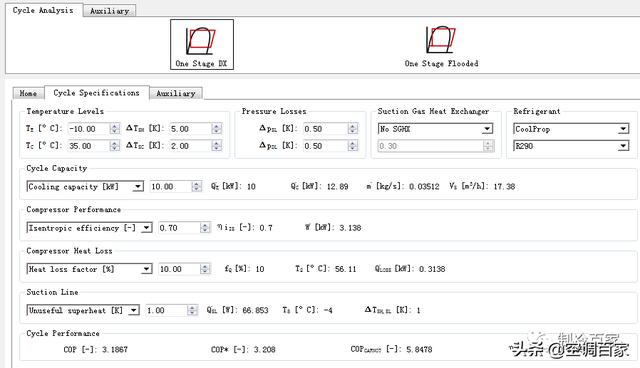

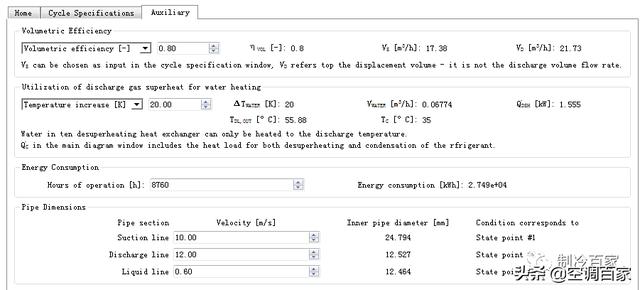

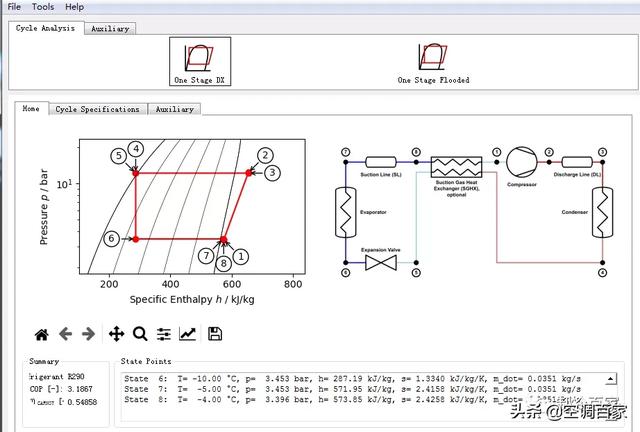

04、简单实用性热力计算—Cooltools 这个软件是Coolpack的简单版本,功能也比较简单,做单级压缩(带回热循环)的热力计算,可以进行系统热力计算、压缩机的参数选型计算、两器的换热温差/换热面积的计算等: ![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/6391e64411d64817b0e9fa167ac7067c)
![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/f76d58e3e8ec4c91b63341234fcacf9e)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/6e488e72390244bfbf1e016810e9e553)

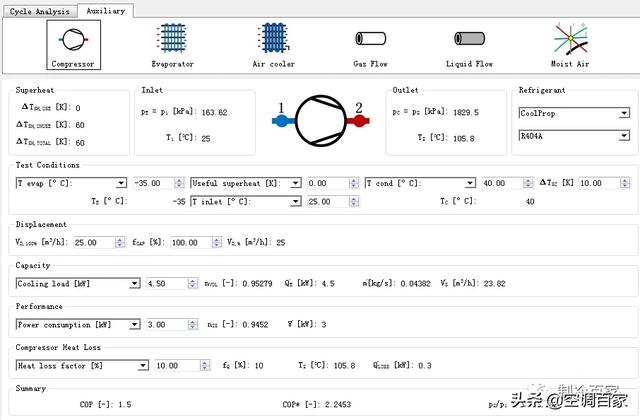

压缩机参数计算: ![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/ec545ec6756844f6b0a85d4ad0013eda)

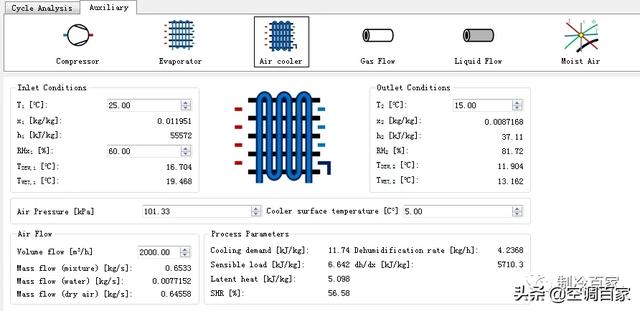

两器计算: ![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/c55ff20202a645df9fb87d163bcafd4d)
管径与换热计算等: ![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/ea2fd7484261461a9891d28f7b2269d8)

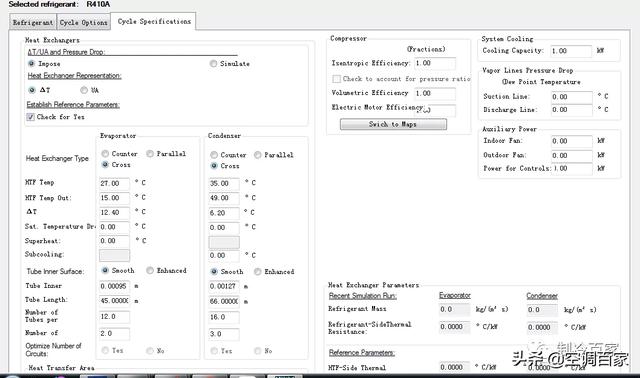

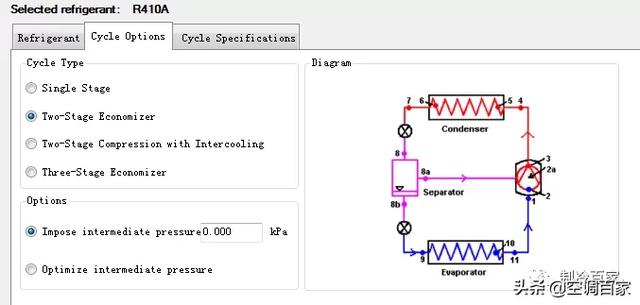

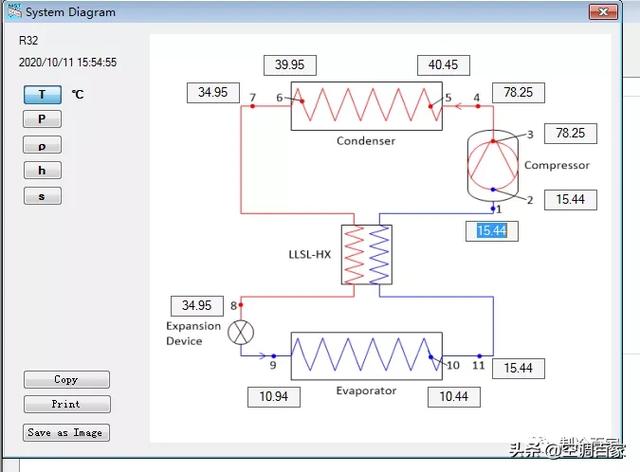

05、动态制冷系统仿真计算—Cycle ![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/20d2f877da6a408fbd7ed910bbd7ad95)
![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/d51ec2863c514958a72e2302abda8b97)
![](http://p26-tt.byteimg.com/large/pgc-image/4dc5ecb416b042108439ef60e0d5489b)

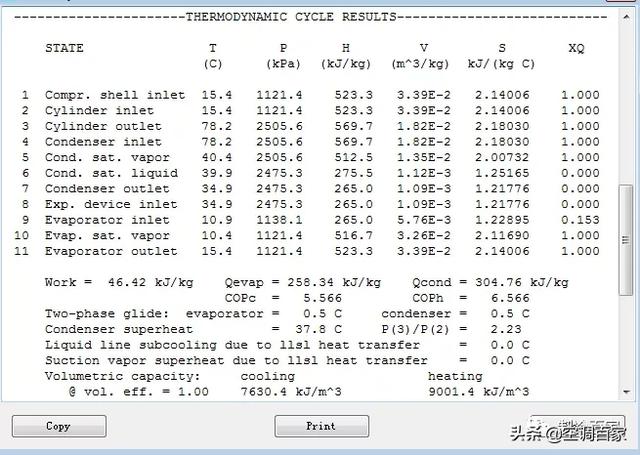

![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/329135e24f874b7e8fd31353eab45518)
![](http://p26-tt.byteimg.com/large/pgc-image/ce24242f148d44628466dec9cc09cf16)
![](http://p26-tt.byteimg.com/large/pgc-image/cef2389d036e4c8f8b7392ccb66f9459)

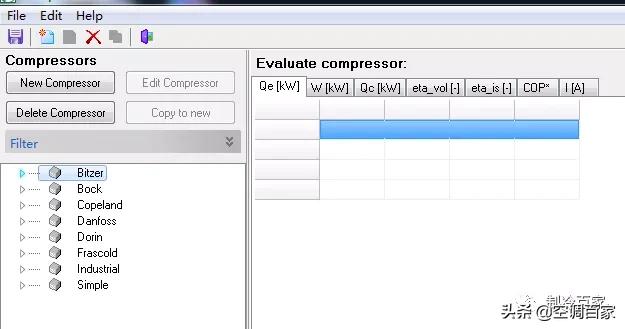

关于制冷系统的软件,我们就介绍到这里,有了这几个软件,做制冷系统热力计算和选型是完全足够的;下面我们看几个部件选型的软件: 01、海量压缩机参数软件—CompressorDB 这是一个涵盖了基本上市面上所有品牌压缩机的参数表;对于压缩机的选型非常有帮助,能够快速的选择到自己需要的压缩机,再也不用查样本或者选型软件了: ![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/71371d4f973e43c1ad35f845d8288540)

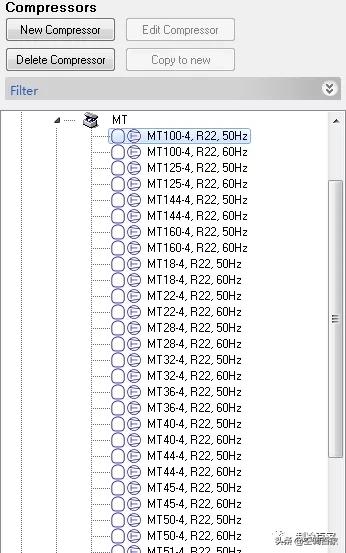

我们看下丹佛斯MT系列的压缩机: ![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/5f56cbc53969423da508cc2535fbba6b)

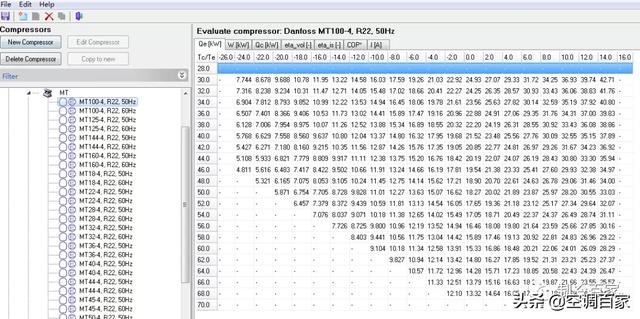

点击MT100-4,R22: ![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/6e4688747fbc4a15a5c79f24993eb52c)

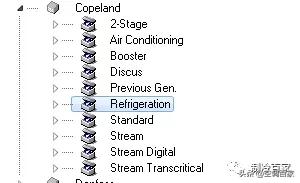

看下谷轮的: ![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/c9cca2876b7641e7b1649cfd24a20040)
![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/101dd1718b75413e9edd6ede9cea4092)

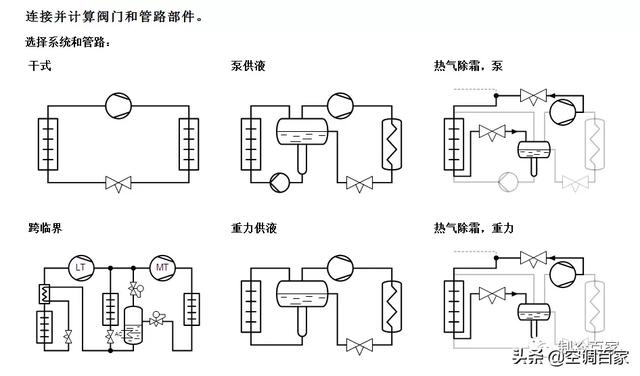

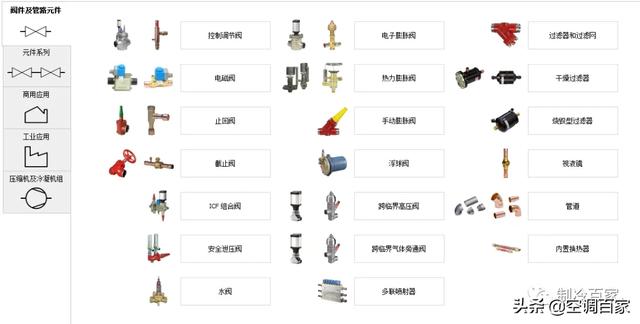

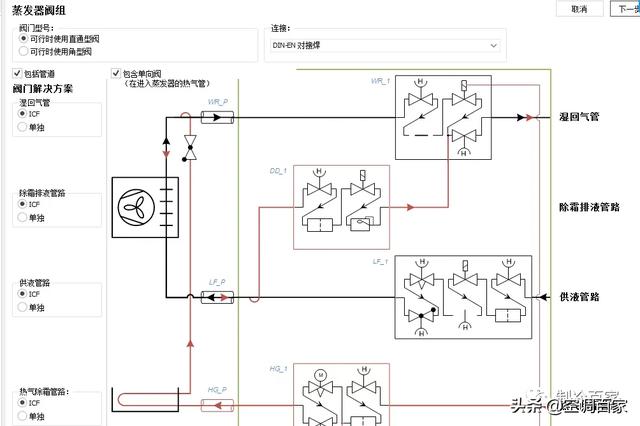

真的是太全了,没法一一截图展示: 02、压缩机与部件选型软件—Coolselector2 这个软件是丹佛斯出品的,可以选择丹佛斯相关的制冷产品和部件,比如压缩机、节流阀、辅助部件等; ![](http://p26-tt.byteimg.com/large/pgc-image/cd346302efc042f1954efa63055f2aee)
![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/6f294556f2a44cb18543aa73b1d90b59)
![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/c1d8b20a55df4a1c9873ec4cf9fe32d9)
![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/7a8a00a36fe448fd95d53c0ceddaa539)

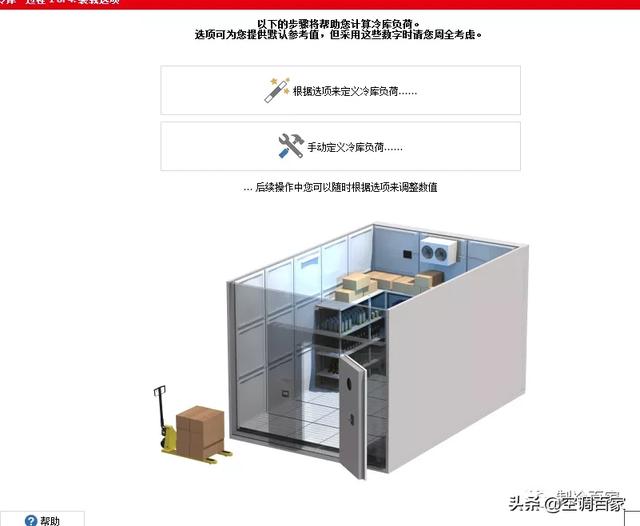

同时这个软件还具有冷库负荷计算的强大功能: ![](http://p26-tt.byteimg.com/large/pgc-image/c308fd79035d476983b4db7ff2340d4e)
![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/a558bd4f7fa5450eb172845ce73ac98b)

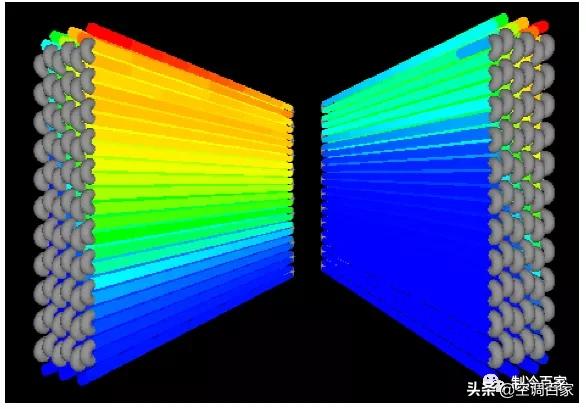

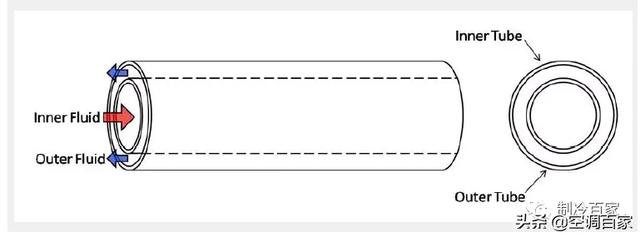

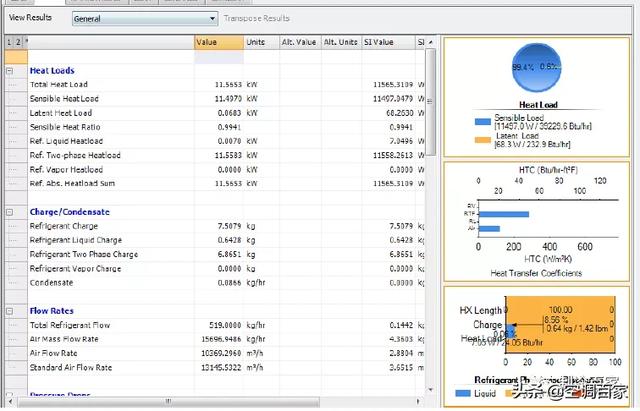

关于压缩机的选型软件,博客、汉钟、比泽尔、谷轮等等品牌都有相应的压缩机软件,我们这里只把丹佛斯的选型软件列举到十大仿真软件,因为丹佛斯的这个软件做的确实很好,值得各位制冷同行去收藏! 03、强大又免费的换热器仿真软件—Coildesigner 这个软件我们在前面的课程和资料中,已经详细的介绍了这个软件的功能;可以计算翅片管式、微通道、冰箱换热器、套换等换热器,看下以下的截图吧: 翅片管式: ![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/a84b0878be574771bd682db36a8640a3)
![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/afbc7f8c087e4ac792aa1ed7c9b69408)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/d7852961d5e244e59f074c7b6db174b0)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/c87a98c491a04359bddf43e7adbbb5ae)

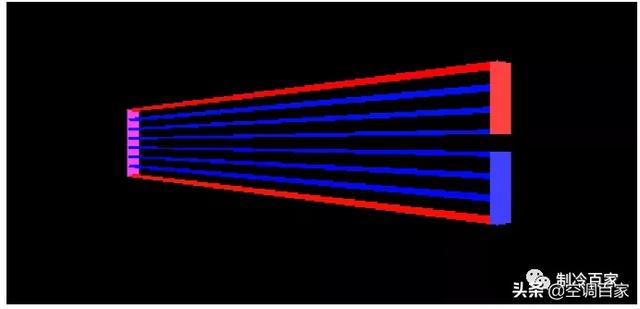

微通道: ![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/8aa78853f3f245ea85f15c85ec919c7d)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/94c1fa224011407aa0ae08bd7aa29667)

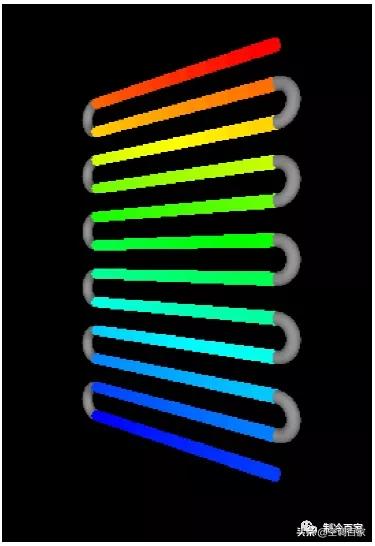

其他: ![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/304d3ea02a644489b4d136e5c9bc832d)
![](http://p26-tt.byteimg.com/large/pgc-image/6751bf43a35343de9002e1822d481caf)
![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/b1dd494646454bdfb78938564b3c05bc)

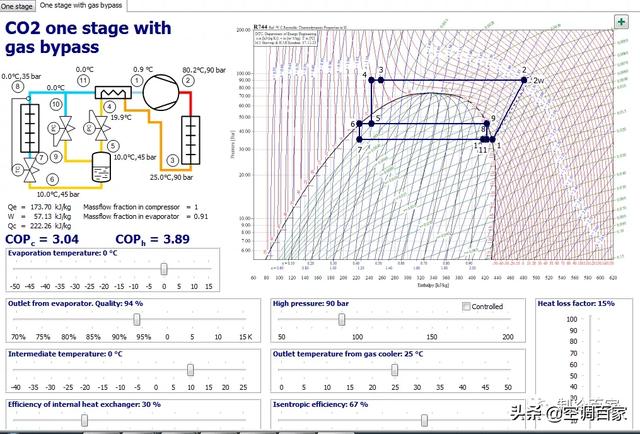

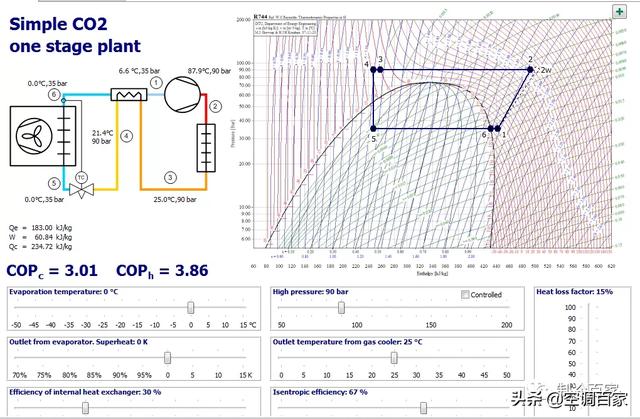

04、二氧化碳制冷/热泵系统仿真—CO2 Cycle 单级、双级二氧化碳制冷/热泵仿真系统。 ![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/c97c5999ddf7404c9b22b9b07cfbde39)
![](http://p9-tt-ipv6.byteimg.com/large/pgc-image/7470eed909f64ebc9b52c2284cabb5b8)

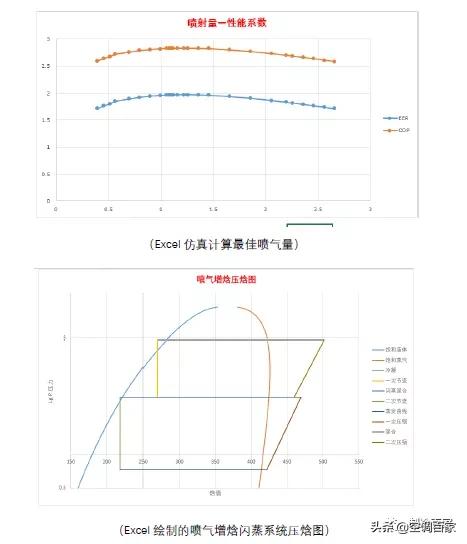

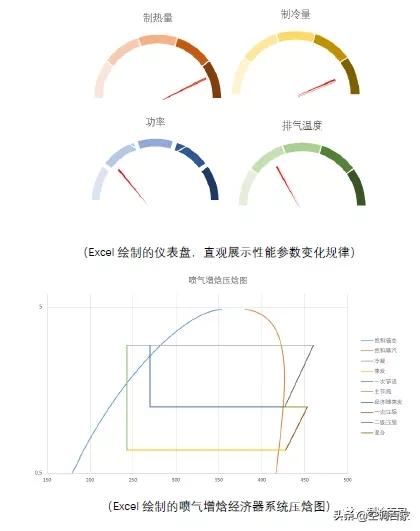

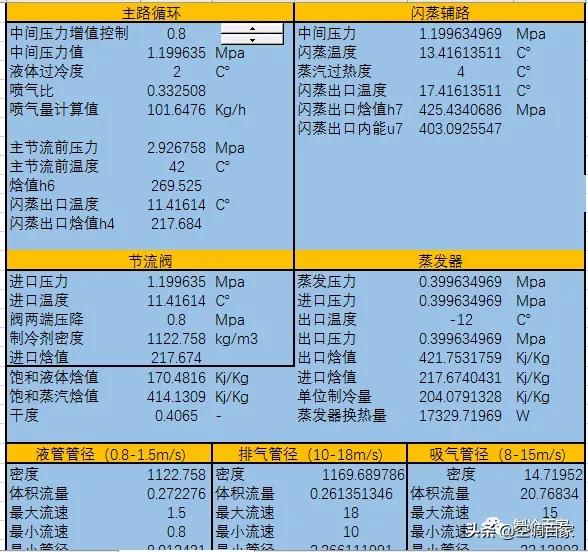

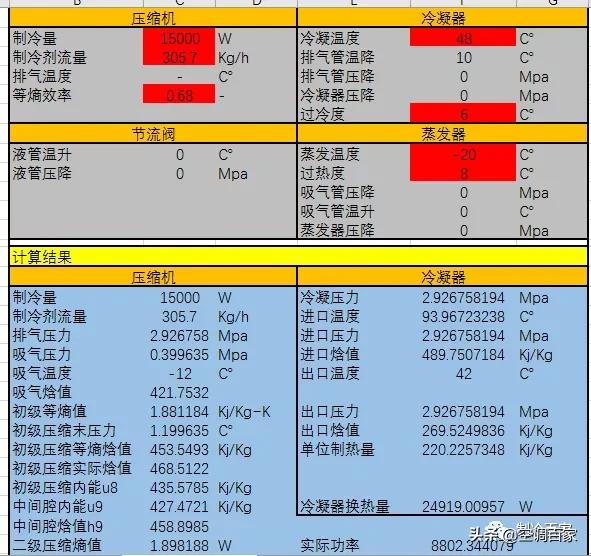

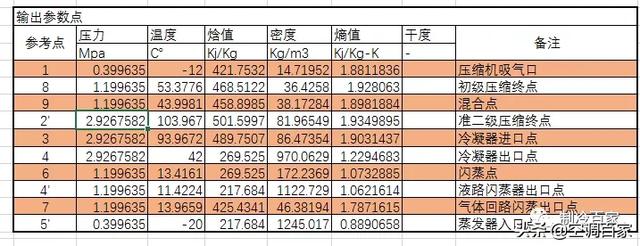

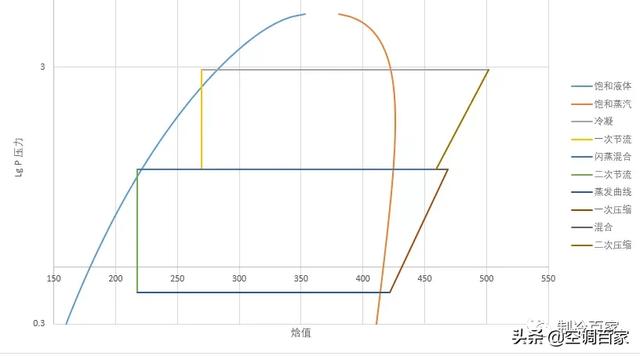

05、人人都能学会的仿真—Excel制冷仿真 这个我们在之前的介绍中,有详细的课程讲解了如何用Excel来做制冷系统的仿真,看下以下的截图吧:
![](http://p6-tt-ipv6.byteimg.com/large/pgc-image/49242cd5cd7a487d8e2396f418c8d622)
![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/52efe4a806f64cdcaa469e59d9ee3455)
![](http://p26-tt.byteimg.com/large/pgc-image/7b3d0e290ad24dbbadb4c77ff79c00a2)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/250ed0eb23e643ccb72bf74309e6b843)
![](http://p26-tt.byteimg.com/large/pgc-image/179786d480ea477c9abba884c1bc59a7)
![](http://p3-tt-ipv6.byteimg.com/large/pgc-image/9005608790834c1bb39c8d328f5726ea)
![](http://p1-tt-ipv6.byteimg.com/large/pgc-image/67009eb4ab5f47c79794457f3f1aed12)
后续:
关于做制冷系统设计的软件中,不同行业有不同的实用型小软件或者小工具,由于数量有限,我们的名单中只列举了十大软件,很多实用型的软件可能都不在这里面,比如:Refprop、EVAP-COND、Coilcal、Thecal。。。。。。 关于上述的软件,我们制冷百家网已经为各位粉丝提供了,感兴趣的可以去下载吧,后续我们将推出一些公开课,教大家怎么去使用这些实用的软件等。
